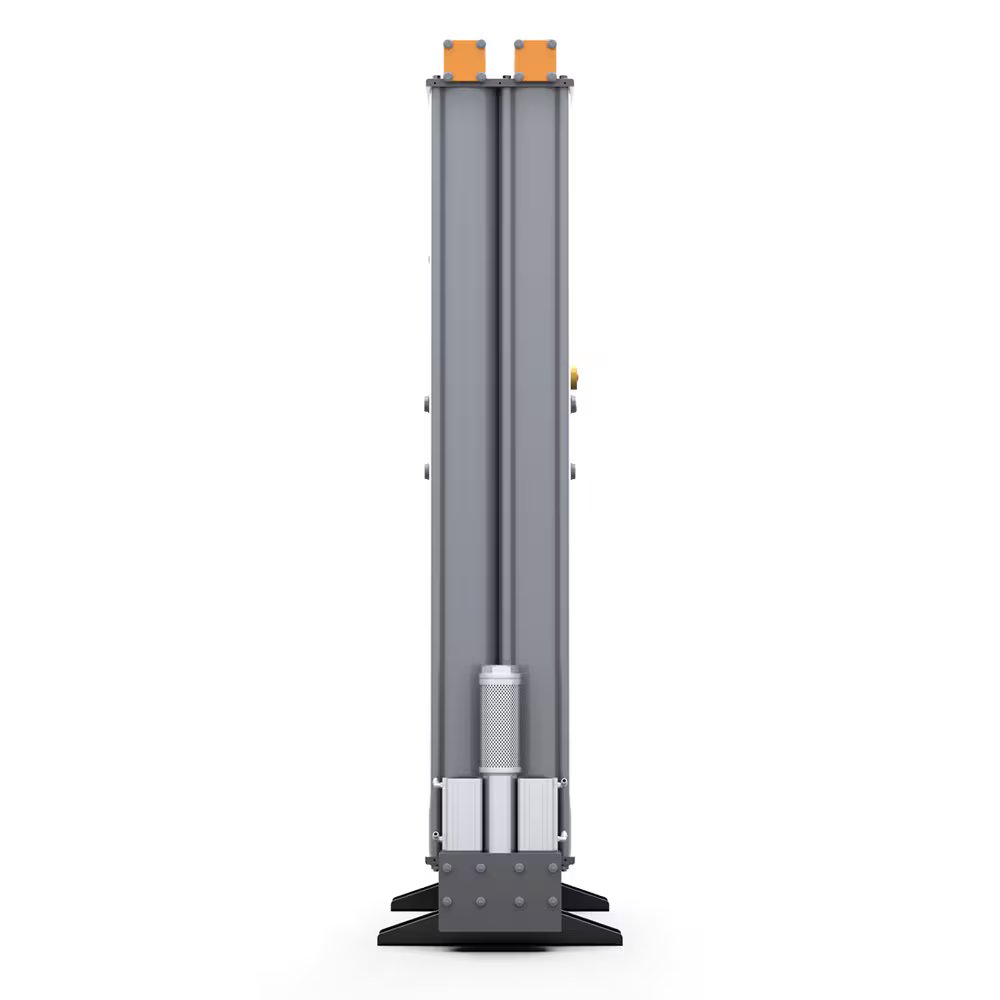

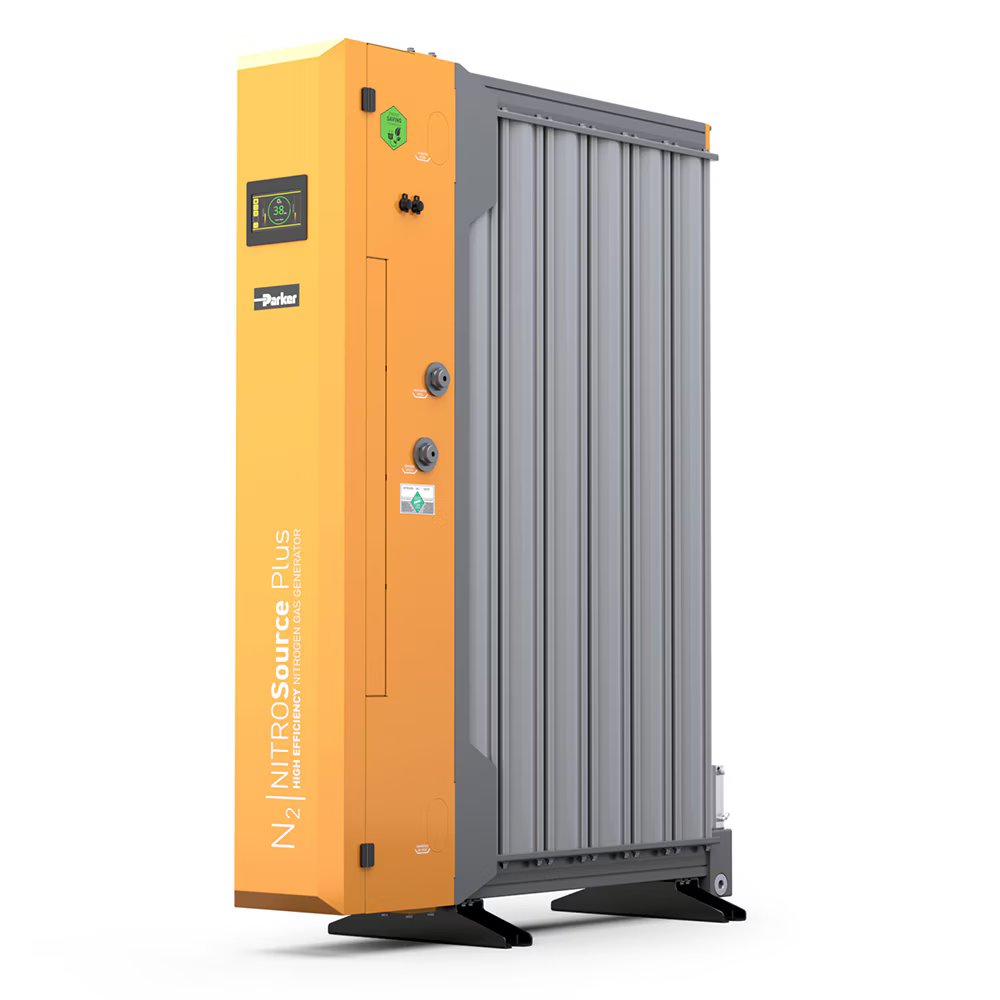

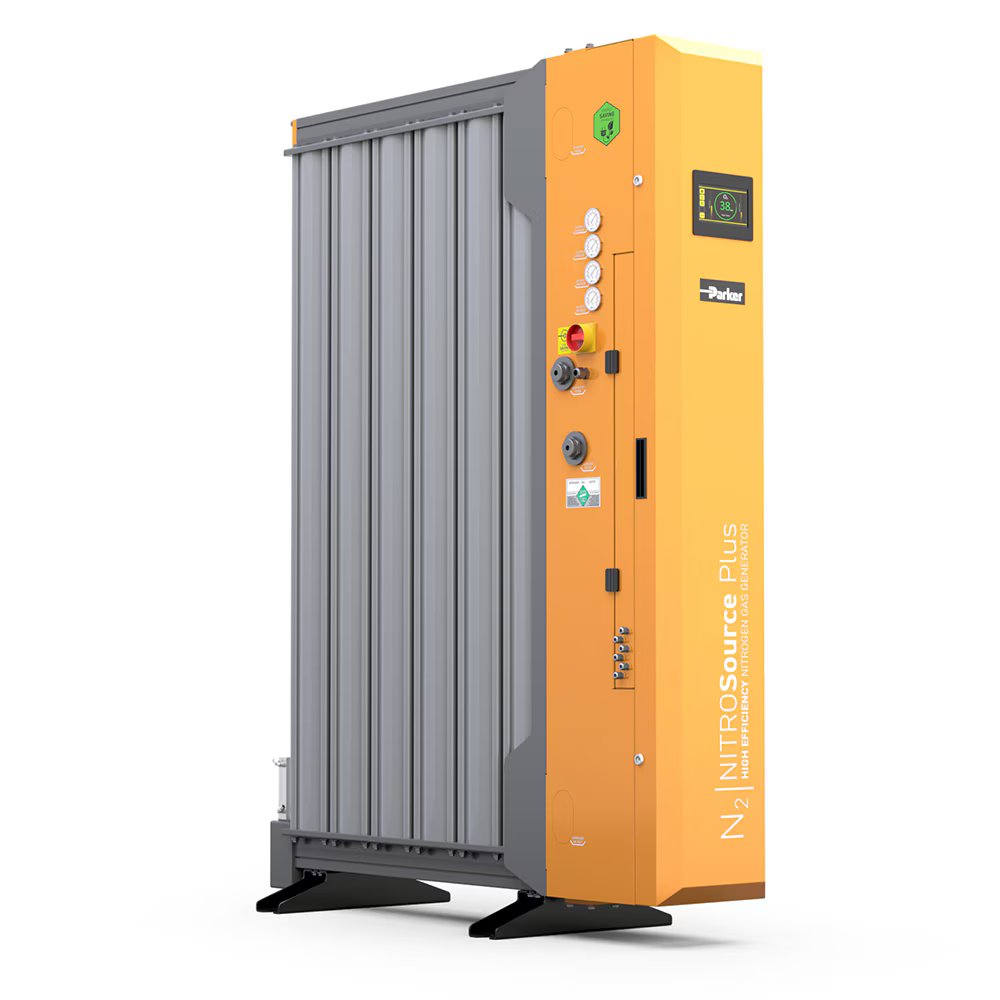

The NSP-030 nitrogen generator from Parker is based on advanced technology for producing nitrogen with a purity level ranging from 97% to 99.9995%.
The generator enables continuous and reliable on-site production of clean gas at the customer’s location, without dependence on external supply.
It is ideal for critical industrial applications that require high-quality nitrogen, while offering operational savings and minimal maintenance.
- Working temperature Max / Min (Dec°C)50/5
- Recommended working temperature (Dec°C)20
- Working pressure Max / Min (BAR)13/5
- Supply voltage100-240V AC (±10%) 50/60Hz
- Height (mm)2063
- Width (mm)550
- Depth (mm)1052
- Weight (kg)429
- Compressed air inlet connection (COOL)"1
- Nitrogen outlet connection (Cold)"1
- Nitrogen tank inlet connection (Cold)"1
- Nitrogen tank outlet connection (Cold)"1
| Purity (Remaining Oxygen Content) vs Nitrogen Outlet Flow (m3/hr) | |
|---|---|
| Model | NSP-030 |
| 5ppm | 9,4 |
| 10ppm | 10,8 |
| 50ppm | 14,6 |
| 100ppm | 16,6 |
| 250ppm | 19,7 |
| 500ppm | 23,1 |
| 0.1% | 25,8 |
| 0,50% | 34,7 |
| 1.0% | 40,9 |
| 2,0% | 48,7 |
| 3,0% | 55,1 |
